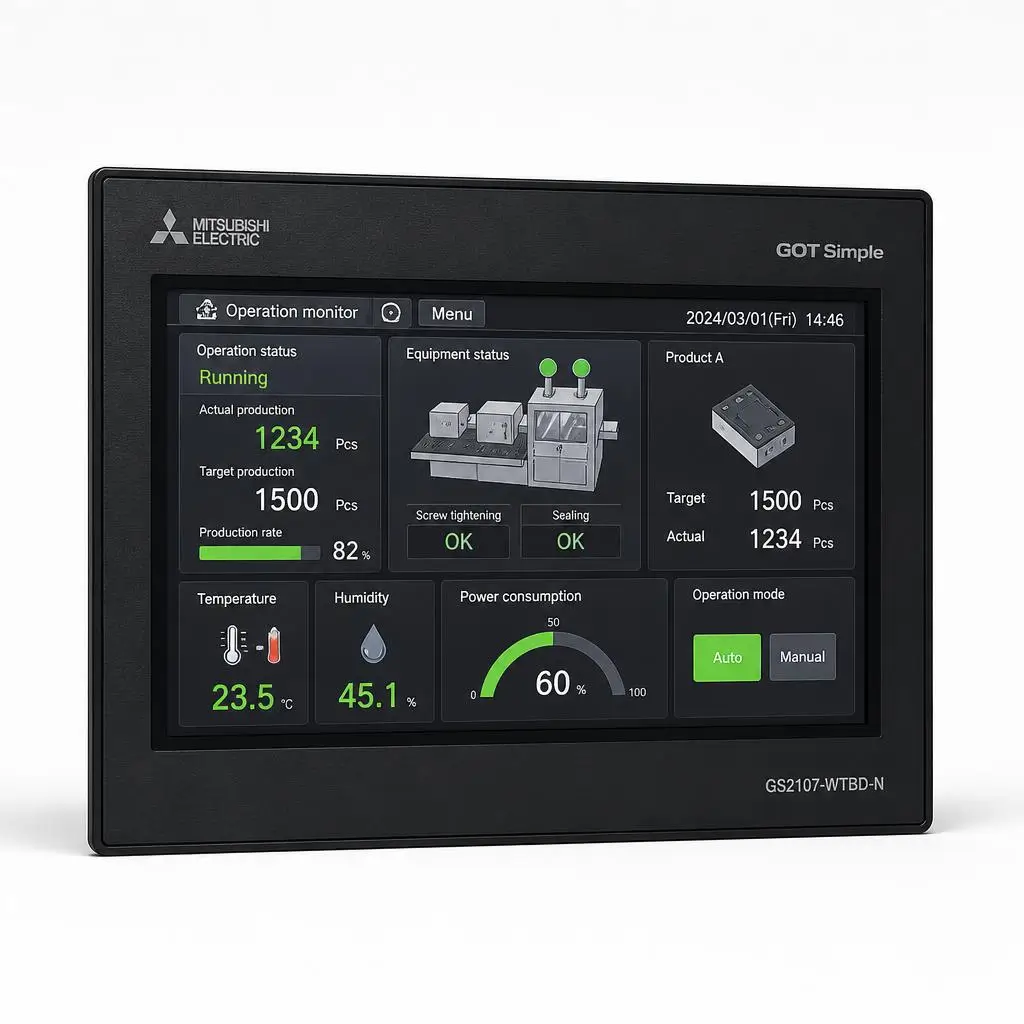

Mitsubishi GS2107-WTBD-N HMI
The Mitsubishi GS2107-WTBD-N is a 7-inch Human-Machine Interface (HMI) from the GOT Simple GS21 Series. Designed for industrial automation, it provides a compact operator interface for machine visualization, monitoring, and control.
Its 7-inch TFT color LCD offers an 800 × 480 WVGA resolution with 65,536 colors, ensuring clear visualization of machine status, process information, alarms, and operating parameters.
Flexible Industrial Connectivity
The GS2107-WTBD-N features built-in Ethernet, RS-232, RS-422/485, USB Mini-B, and SD/SDHC memory card support, enabling easy integration with Mitsubishi PLCs and other industrial automation equipment.
Designed for Industrial Applications
With a compact panel-mount design and an IP65F-rated front panel, the GS2107-WTBD-N is ideal for machine control and process monitoring applications.
HRN Automation supplies Mitsubishi HMIs and complete automation solutions, including PLCs, HMIs, VFDs, control panels, programming, and commissioning support.
Key Features
| Display | 7-inch widescreen TFT Color LCD |
|---|---|
| Resolution | WVGA (800 × 480 pixels) |
| Display Colors | 65,536 colors |
| Communication | Ethernet, RS-232, RS-422/485 |
| Storage | SD/SDHC memory card (up to 32 GB) |
| Touch Panel | Analog resistive touch screen |
| Mounting | Panel mount |
Technical Specifications
| Manufacturer | Mitsubishi Electric |
|---|---|
| Model | GS2107-WTBD-N |
| Material Number | 584883 |
| Series | GOT Simple GS21 |
| Product Type | Human-Machine Interface (HMI) |
| Display | TFT Color LCD |
| Screen Size | 7-inch widescreen |
| Resolution | 800 × 480 (WVGA) |
| Display Colors | 65,536 |
| Power Supply | 24 V DC |
| User Memory (ROM) | 15 MB |
| User Memory (RAM) | Up to 64 MB* |
| Ethernet | 1 Port |
| RS-232 | 1 Port |
| RS-422/485 | 1 Port |
| USB Device | USB Mini-B |
| Memory Card | SD/SDHC (up to 32 GB) |
| Touch Panel | Analog Resistive Film |
| Front Protection | IP65F |
| Dimensions | 206 × 155 × 50 mm |
| Panel Cutout | 191 × 137 mm |
| Compatible Software | GT Works3 Version 1.320J or later |
*Operation RAM of up to 64 MB is available under specified operating conditions.
